Vis à tête plate Pan-Head avec fente en acier zingué-bleu DIN 85 4.8
-
- 524140000
- Vis à tête plate Pan-Head
- acier
- zingué-bleu
- 4.8
- DIN 85
- ISO 1580
- VSM 13304
- Exécution A, toutes les longueurs, filetage ~ jusqu'à la tête

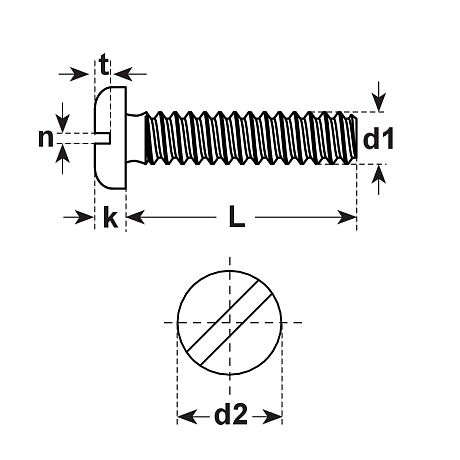

| d1 | L mm | d2 mm | PK (pc) | Prix de catalogue dans CHF par 100 pc | |||||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 500 | 1000 | |||||||
| M 2,5 | 4 | 5 | 100 | 4.37 |
| ||||
| M 2,5 | 5 | 5 | 100 | 4.37 |
| ||||
| M 2,5 | 6 | 5 | 100 | 4.37 |
| ||||
| M 2,5 | 8 | 5 | 100 | 4.37 |
| ||||
| M 2,5 | 10 | 5 | 100 | 4.37 |
| ||||
| M 2,5 | 16 | 5 | 100 | 4.95 |
| ||||
| M 2,5 | 20 | 5 | 100 | 6.00 |
| ||||
| M 3 | 4 | 6,0 | 200 | 4.36 | 3.02 | 2.22 |
| ||
| M 3 | 5 | 6,0 | 100 | 4.36 | 3.02 | 2.22 |
| ||
| M 3 | 6 | 6,0 | 100 | 4.36 | 3.02 | 2.22 |
| ||
| M 3 | 8 | 6,0 | 100 | 4.36 | 3.02 | 2.22 |
| ||
| M 3 | 10 | 6,0 | 100 | 4.36 | 3.02 | 2.22 |
| ||
| M 3 | 12 | 6,0 | 100 | 4.36 | 3.02 | 2.22 |
| ||
| M 3 | 16 | 6,0 | 100 | 4.36 | 3.02 | 2.22 |
| ||
| M 3 | 20 | 6,0 | 100 | 4.36 | 3.02 | 2.22 |
| ||
| M 3 | 25 | 6,0 | 100 | 4.82 | 4.00 | 3.36 |
| ||
| M 3 | 30 | 6,0 | 100 | 6.29 | 5.25 | 4.34 |
| ||
| M 3 | 35 | 6,0 | 100 | 7.57 | 6.40 | 5.20 |
| ||
| M 3 | 40 | 6,0 | 100 | 8.50 | 7.22 | 5.83 |
| ||
| M 3 | 45 | 6,0 | 100 | 10.02 | 8.62 | 6.97 |
| ||
| M 3 | 50 | 6,0 | 100 | 10.02 | 8.62 | 6.97 |
| ||
| M 3,5 | 5 | 7 | 100 | 4.37 |
| ||||
| M 3,5 | 6 | 7 | 100 | 4.13 |
| ||||
| M 3,5 | 8 | 7 | 100 | 4.37 |
| ||||
| M 3,5 | 10 | 7 | 100 | 4.37 |
| ||||
| M 3,5 | 12 | 7 | 100 | 4.37 |
| ||||
| M 3,5 | 16 | 7 | 100 | 4.54 |
| ||||
| M 3,5 | 20 | 7 | 100 | 5.13 |
| ||||
| M 3,5 | 25 | 7 | 100 | 6.00 |
| ||||
| M 4 | 4 | 8 | 100 | 5.76 | 4.86 | 4.00 |
| ||
| M 4 | 5 | 8 | 100 | 4.54 | 3.82 | 3.20 |
| ||
| M 4 | 6 | 8 | 100 | 4.45 | 3.82 | 3.13 |
| ||
| M 4 | 8 | 8 | 100 | 4.29 | 3.59 | 2.62 |
| ||
| M 4 | 10 | 8 | 100 | 4.29 | 3.59 | 2.62 |
| ||
| M 4 | 12 | 8 | 100 | 4.29 | 3.59 | 2.62 |
| ||
| M 4 | 14 | 8 | 100 | 4.82 | 4.08 | 3.36 |
| ||
| M 4 | 16 | 8 | 100 | 5.20 | 4.45 | 3.53 |
| ||
| M 4 | 20 | 8 | 100 | 5.65 | 4.86 | 3.92 |
| ||
| M 4 | 25 | 8 | 100 | 6.29 | 5.25 | 4.34 |
| ||
| M 4 | 30 | 8 | 100 | 7.22 | 6.06 | 4.91 |
| ||
| M 4 | 35 | 8 | 100 | 9.08 | 7.68 | 6.29 |
| ||
| M 4 | 40 | 8 | 100 | 9.79 | 8.22 | 6.86 |
| ||
| M 4 | 45 | 8 | 100 | 11.66 | 9.91 | 8.22 |
| ||
| M 4 | 50 | 8 | 100 | 13.05 | 10.97 | 9.15 |
| ||
| M 4 | 55 | 8 | 100 | 17.37 |
| ||||
| M 4 | 60 | 8 | 100 | 18.30 | 15.32 | 12.80 |
| ||
| M 4 | 70 | 8 | 100 | 28.09 | 24.01 | 19.66 |
| ||
| M 4 | 80 | 8 | 100 | 33.11 | 28.16 | 24.64 |
| ||
| M 5 | 6 | 10 | 100 | 9.26 | 7.88 | 6.50 |
| ||
| M 5 | 8 | 10 | 100 | 5.65 | 4.86 | 3.92 |
| ||
| M 5 | 10 | 10 | 100 | 5.66 | 4.84 | 4.01 |
| ||
| M 5 | 12 | 10 | 100 | 6.17 | 5.25 | 4.25 |
| ||
| M 5 | 14 | 10 | 100 | 7.68 | 6.64 | 5.31 |
| ||
| M 5 | 16 | 10 | 100 | 6.27 | 5.33 | 4.29 |
| ||
| M 5 | 18 | 10 | 100 | 8.16 | 6.99 | 5.72 |
| ||
| M 5 | 20 | 10 | 100 | 7.54 | 6.51 | 5.26 |
| ||
| M 5 | 25 | 10 | 100 | 8.85 | 7.31 | 6.06 |
| ||
| M 5 | 30 | 10 | 100 | 9.79 | 8.22 | 6.86 |
| ||
| M 5 | 35 | 10 | 100 | 10.83 | 9.03 | 7.54 |
| ||
| M 5 | 40 | 10 | 100 | 12.00 | 10.06 | 8.45 |
| ||
| M 5 | 45 | 10 | 100 | 14.10 | 11.89 | 9.83 |
| ||
| M 5 | 50 | 10 | 100 | 16.32 | 13.60 | 11.31 |
| ||
| M 5 | 55 | 10 | 100 | 20.63 | 17.49 | 14.41 |
| ||
| M 5 | 60 | 10 | 100 | 20.57 | 17.49 | 14.63 |
| ||
| M 5 | 80 | 10 | 100 | 37.05 | 31.57 | 26.92 |
| ||
| M 5 | 90 | 10 | 100 | 59.22 | 50.36 | 43.01 |
| ||
| M 5 | 100 | 10 | 100 | 59.95 | 50.93 | 44.00 |
| ||
| M 6 | 8 | 12 | 100 | 10.23 | 8.69 | 7.26 |
| ||
| M 6 | 10 | 12 | 100 | 8.45 | 7.20 | 5.83 |
| ||
| M 6 | 12 | 12 | 100 | 8.92 | 7.54 | 6.28 |
| ||
| M 6 | 14 | 12 | 100 | 10.60 | 9.08 | 7.43 |
| ||
| M 6 | 16 | 12 | 100 | 9.02 | 7.70 | 6.38 |
| ||
| M 6 | 18 | 12 | 100 | 11.44 | 9.79 | 8.14 |
| ||
| M 6 | 20 | 12 | 100 | 11.08 | 9.49 | 7.62 |
| ||
| M 6 | 25 | 12 | 100 | 12.35 | 10.40 | 8.69 |
| ||
| M 6 | 30 | 12 | 100 | 12.54 | 10.78 | 8.91 |
| ||
| M 6 | 35 | 12 | 100 | 15.74 | 13.26 | 11.08 |
| ||
| M 6 | 40 | 12 | 100 | 16.90 | 14.06 | 11.78 |
| ||
| M 6 | 45 | 12 | 100 | 20.63 | 17.49 | 14.41 |
| ||
| M 6 | 50 | 12 | 100 | 21.80 | 18.18 | 15.21 |
| ||
| M 6 | 55 | 12 | 100 | 30.42 | 25.88 | 20.47 |
| ||
| M 6 | 60 | 12 | 100 | 26.07 | 22.22 | 19.25 |
| ||
| M 6 | 70 | 12 | 100 | 39.23 | 33.51 | 28.16 |
| ||
| M 6 | 90 | 12 | 100 | 69.96 | 59.57 | 50.90 |
| ||
| M 6 | 100 | 12 | 100 | 72.64 | 62.34 | 51.94 |
| ||
| M 8 | 10 | 16 | 100 | 29.96 |
| ||||
| M 8 | 12 | 16 | 100 | 28.27 |
| ||||
| M 8 | 16 | 16 | 100 | 27.05 |
| ||||
| M 8 | 20 | 16 | 100 | 25.52 |
| ||||
| M 8 | 25 | 16 | 100 | 29.26 |
| ||||
| M 8 | 30 | 16 | 100 | 30.66 |
| ||||
| M 8 | 35 | 16 | 100 | 32.18 |
| ||||
| M 8 | 40 | 16 | 100 | 36.49 |
| ||||
| M 8 | 45 | 16 | 100 | 44.31 |
| ||||
| M 8 | 50 | 16 | 100 | 45.00 |
| ||||
| M 8 | 60 | 16 | 100 | 51.06 |
| ||||
| M 8 | 70 | 16 | 100 | 65.88 |
| ||||
| M 8 | 80 | 16 | 100 | 85.70 |
| ||||
| M 6 | 80 | 12 | 100 | 51.81 | 44.11 | 38.50 |
| ||
