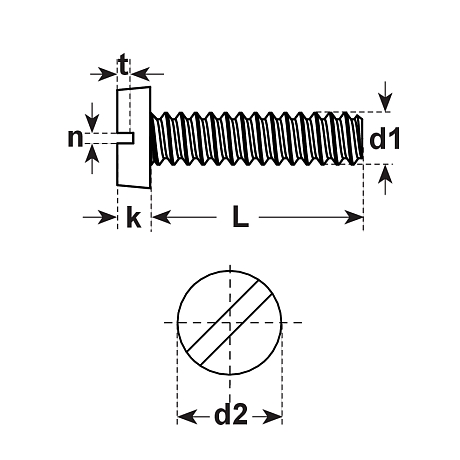

Vis à tête cylindrique en polyamide 6.6 naturel/blanc DIN 84

d1	L mm	d2 mm	PK (pc)	Prix de catalogue dans CHF par 100 pc
				1	1000
M 3	4	5,5	100	14.13	10.23	Pce.

M 3	6	5,5	100	13.32	9.73	Pce.

M 3	8	5,5	100	13.32	9.73	Pce.

M 3	10	5,5	100	13.56	9.95	Pce.

M 3	12	5,5	100	14.53	9.93	Pce.

M 3	16	5,5	100	14.53	10.13	Pce.

M 3	20	5,5	100	14.93	11.32	Pce.

M 3	25	5,5	100	16.02	11.72	Pce.

M 3	30	5,5	100	17.74	12.92	Pce.

M 4	6	7	100	13.96	10.13	Pce.

M 4	8	7	100	15.04	10.16	Pce.

M 4	10	7	100	15.50	11.38	Pce.

M 4	12	7	100	15.61	11.32	Pce.

M 4	16	7	100	14.74	10.69	Pce.

M 4	20	7	100	15.44	10.90	Pce.

M 4	25	7	100	18.42	14.53	Pce.

M 4	30	7	100	20.36	14.64	Pce.

M 4	35	7	100	20.94	15.33	Pce.

M 4	40	7	100	21.85	15.55	Pce.

M 5	6	8,5	100	16.36		Pce.

M 5	8	8,5	100	15.87	10.96	Pce.

M 5	10	8,5	100	17.74	12.30	Pce.

M 5	12	8,5	100	18.65	12.69	Pce.

M 5	16	8,5	100	19.74	13.35	Pce.

M 5	20	8,5	100	22.77	16.65	Pce.

M 5	25	8,5	100	23.05	16.76	Pce.

M 5	30	8,5	100	26.55	19.74	Pce.

M 5	40	8,5	100	30.67	21.57	Pce.

M 5	50	8,5	100	33.65	27.35	Pce.

M 6	6	10	100	19.74		Pce.

M 6	8	10	100	19.74	14.13	Pce.

M 6	10	10	100	19.48	14.25	Pce.

M 6	12	10	100	19.87	14.47	Pce.

M 6	16	10	100	20.35	15.06	Pce.

M 6	20	10	100	22.62	16.74	Pce.

M 6	25	10	100	25.06		Pce.

M 6	30	10	100	33.08	23.63	Pce.

M 6	40	10	100	35.71	25.69	Pce.

M 6	50	10	100	37.08	27.06	Pce.

M 6	60	10	100	39.49	28.84	Pce.

M 8	10	13	100	37.80	27.86	Pce.

M 8	16	13	100	46.59	33.77	Pce.

M 8	20	13	100	49.33	35.71	Pce.

M 8	25	13	100	51.74	38.00	Pce.

M 8	30	13	100	52.48	38.39	Pce.

M 8	40	13	100	61.35	44.18	Pce.

M 8	60	13	100	84.02	60.38	Pce.

M 10	20	16	100	90.43	66.56	Pce.

M 10	25	16	100	92.88	68.47	Pce.
