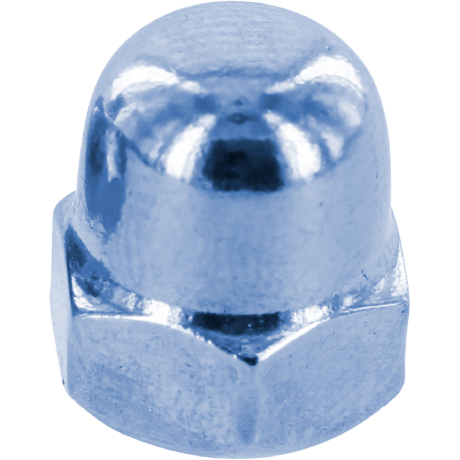

Ecrous borgnes en acier zingué-bleu DIN 1587 6
-
- 532420000
- Ecrous borgnes
- acier
- zingué-bleu
- 6
- DIN 1587
forme haute

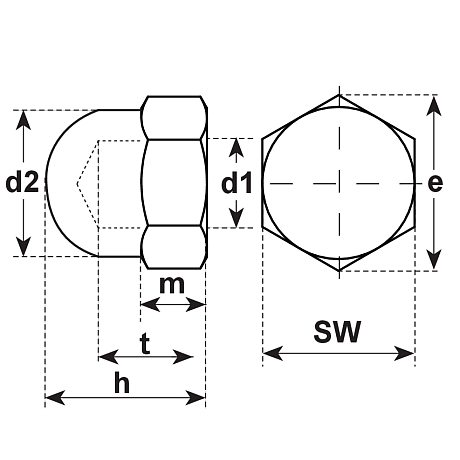

| d1 | d2 mm | e mm | PK (pc) | Prix de catalogue dans CHF par 100 pc | |||||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1000 | ||||||||
| M 3 | 5,0 | 6,08 | 100 | 17.17 | 11.11 | ||||
| M 4 | 6,5 | 7,74 | 100 | 19.09 | 12.57 | ||||
| M 5 | 7,5 | 8,87 | 100 | 22.03 | 14.25 | ||||
| M 6 | 9,5 | 11,05 | 100 | 27.86 | 18.14 | ||||
| M 8 | 12,5 | 14,38 | 100 | 44.49 | 32.61 | ||||
| M 10 | 16,0 | 18,90 | 100 | 85.86 | 61.56 | ||||
| M 12 | 18,0 | 21,10 | 100 | 139.32 | 102.06 | ||||
| (M 14) | 21,0 | 24,49 | 100 | 227.81 | 171.72 | ||||
| M 16 | 23,0 | 26,75 | 100 | 275.18 | 202.17 | ||||
| M 20 | 28,0 | 33,53 | 50 | 518.91 | 385.25 | ||||
| M 24 | 34,0 | 39,98 | 50 | 990.36 | |||||
| M 27 | 40,0 | 47,30 | 100 | 2'054.92 | |||||
